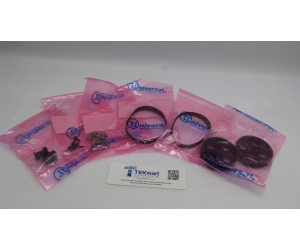

Spare parts for Universal Radial and Axial through-hole insertion machines

Model specifications:

(RAD5 6360D, RAD8 6380A, RAD8 XT 6380B, VCD5 6241D, VCD8 6241F, VCD Dual 6292A, SEQ 2596A, SEQ5, SEQ8).

UIC Part Number / Part Description
15754 O'RING
15755 O'RING
15759 O'RING
69056 BUJE
87716 SENSOR PROXIMITY
296211 NOZZLE
10075016 BEARING
10131046 BEARING FLANG
10219003 BUSHING DU
10219003 BUSHING DU
10219019 BUSHING DU
10219022 BUSHING DU
10249034 SPRING
10249071 SPRING
10249071 SPRING
10249129 SPRING
10249133 SPRING
10249137 SPRING
10249227 SPRING
10249241 SPRING
10249376 SPRING
10249382 SPRING
10249383 SPRING
10249388 SPRING
10249394 SPRING
10457013 COLLAR CLAMP
10457017 COLLAR CLAMP
10463011 SCREW SHOULDER
10887000 ACTUATOR
10894070 SPRING
10894092 SPRING
12417000 COLLAR
12427000 RATCHET
12429000 ARM
12463000 SPRING HOLDER
12813000 AIR CYL
12825001 BUSHING CLINCH R
12829001 BUSHING CLINCH L
13244000 ECCENTRIC
13918000 HUB
14076000 RETAINER
14077000 PIN
14078000 ROCKER
14079000 SCREW
14080000 PIN
14084000 CLAMP
14085000 CLAMP
14091000 SEAL LARGE
14329000 LOCK NUT
14975002 BEARING BALL
15055000 BUSHING BALL
16784000 LINK
16784000 LINK
17308001 BPALLETET GUIDE
17308002 BPALLETET GUIDE
17459000 SWITCH
17550001 ROTARY ENCODER
17550002 ENCODER ROTARY
17550004 ROTARY ENCODER
18070000 SHOULDER SCREW
18164000 GUIDE WHEEL
18292000 GEAR BELT
20178000 VALVE 3-WAY
20430000 BUMPER
20699000 BEARING NYLINEAR
20904007 CHAIN DRIVE 100 STA
21498000 STOP
21502000 DRIVER PIN
21507000 CUTTER SHAFT
21755001 PC BD WIRE FEEDER
21835000 SWITCH
21838000 BALL BEARING
21838000 BALL BEARING
21886001 THRUST BEARING
21886002 THRUST BEARING
22505000 VALVE STACKING
22679000 SENSOR ASSY
23272000 PLATE
23436000 PULLEY
23502000 PAD
23502002 PAD
23502003 PAD
24628000 PC BD SENSOR
24635000 DRIVE SHAFT ASSY
24783000 SWITCH HALL EFFECT
25239000 LOCKING ELEMENT
25254000 LIGHT BULB
25577000 PLATE SUPPORT
25578001 GUIDE
25579002 BLOCK GUIDE
25582000 SPROCKET CUTTER
25584001 SPROCKET GUIDE
25844000 STOP PAWL
26092000 PUSHBUTTON SW
26121000 RIM
26134000 PIN
27425000 PCB 8AC OUT 2ASM
30141700 WASHER NAYLON
30223700 QUILL SHEAR
30312704 SCRAP HOUSING "T"
30312705 HOUSING VSL
30363800 GEAR WHEEL DRIVE
30410000 CONTACT UNIT
30481301 DETENT
30491900 CYL
30534902 ROT TABLE CABLE ASSY
30568602 SEAL
30568603 SEAL
30576402 STOP
30580401 VALVE 4-WAY
30581301 VALVE FLOW CONTROL
30590701 RETAINER PIN SPRING
30590701 RETAINER PIN
30642102 CUTTER LEFT
30642202 CUTTER RIGHT
30647903 WHEEL DRIVE
30652506 BEARING SPHERICAL
30702002 CONTINUITY TUBE
30792201 RING WIPER
30815701 PLUNGER
30819701 LINK
30820101 HOUSING L
30820102 HOUSING RIGHT
30820202 PAD
30862701 MAGNET
30872201 GEAR BELT
30873701 SENSOR ASSY
30885901 IC
30899701 SPRING LEFT
30899801 SPRING
30903701 BLOCK STOP
30903901 PISTON LOC PIN
30920904 PUSHER
30921902 CYL VALVE UNIT
30942703 ARM
30946901 PIN DRIVER
30946901 PIN DRIVER
30951601 SHAFT
30952101 ACTUATOR
30952602 HOUSING
30953301 SPRING LATCH
30997505 SLIDE
30997607 PUSHER
40051001 MOTOR DC & PULLEY
40075420 O'RING
40075420 O'RING
40075421 O'RING
40075434 O'RING
40075435 O'RING
40089201 CAM ACTUATOR
40167601 SPRING
40172501 SPACER BUMPER
40222208 BODY DRIVER R
40222210 BODY DRIVER R
40222308 BODY DRIVER L
40222310 BODY DRIVER L
40229201 PIN GROOVED
40296602 GUIDE
40398801 PIN PIVOT
40431401 SWITCH PUSHBUTTON
40431401 PUSHBUTTON SW
40446901 PLUNGER SPRING
40447704 GEARBELT
40449201 CURVED SPRING WA
40449201 CURVED SPRING
40470602 PC BD LED ASSY
40470602 PC BD LED
40511201 BEARING
40520201 O'RING
40520202 O'RING
40520202 O'RING
40525301 SHOCK ABSORBER
40546701 LINK ANVIL
40569201 RETAINER
40569601 RETAINER
40579301 PULLEY GEARBELT
40579403 PULLEY GEARBELT
40621802 GUIDE
40650401 AIR MOTOR
40659306 BEARING
40659518 BELT TIMMING
40659518 BELT
40659521 BELT TIMMING
40659521 BELT TIMMING
40659557 BELT TIMMING
40659557 BELT TIMMING
40659557 BELT TIMMING
40659562 BELT
40659570 BELT TIMMING
40659572 BELT
40659578 BELT TIMMING
40659579 BELT TIMMING
40659583 BELT TIMMING
40659598 BELT TIMMING
40659598 BELT TIMMING
40659599 BELT TIMMING
40669501 SWITCH PROXIMITY
40669501 SWITCH
40821201 BUSHING ANVIL BRON
40821301 BUSHING SEAL
40833022 FUSE 10 A
40833809 MAGNALUBE
40968501 GAUGE PIN
40990801 BRACKET SWITCH
41008601 SHOULDER SCREW
41039102 BEARING
41059902 SLEEVE BEARING
41143001 ENCODER ROTARY
41143002 ENCODER
41303005 CYL DOUBLE ACTING
41350102 SLEEVE
41387401 FLANGED
41396101 HOUSING MACHINED
41396101 HOUSING
41396501 AIR CYL
41428501 CLINCH NUT ASSY
41493801 GASKET
41499603 ANVIL
41499706 CUTTER FORMER VSL
41631101 ADAPTOR
41693401 PC BD ROTARY SW
41749801 FIBER UNIT
41835502 SPINDLE COMMON
41835802 HOUSING
41848601 CLAMP RETAINER
41857415 VALVE 4-WAY
41897211 CUTTER
41897212 CUTTER
41920201 ECCENTRIC
41990102 BUSHING BALL
42016001 CLAMP
42016101 ARM
42016102 ARM
42016301 PIN LOCATOR
42016801 SHAFT
42052501 PC BD MM 16 I/O
42068601 LUMINATOR
42101201 BLOCK GEAR
42101301 COUPLING DRIVE
42101401 COUPLING DRIVE
42113801 BLOCK PIVOT
42127101 MOTOR
42134001 VALVE 4-WAY
42239901 SENSOR
42264803 PULLEY IDLER
42277401 COUPLING MALE
42278301 COUPLING
42291601 GEAR BELT
