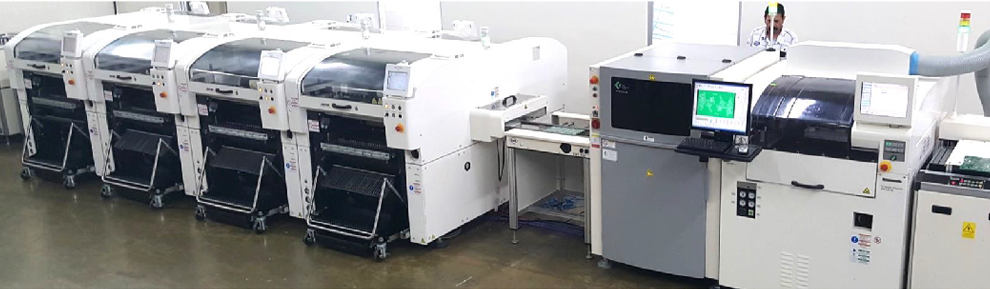

Turn-Key Panasonic NPM-W SMT Line • Low Hours
Late Vintage • Production Ready
Eunil ESU-500 • Eunil EWT-100

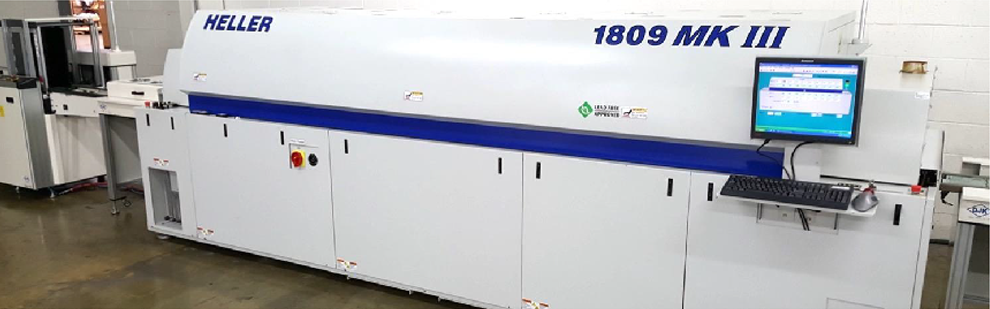

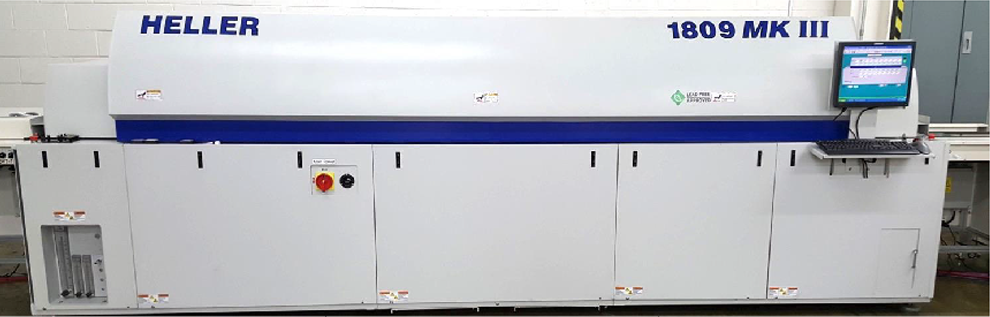

Heller 1809 MKIII Reflow Oven
| Year: | 2008 |
| ~23000: | Hours |
| Heating Zones: | 9 |
| Cooling Zones: | 2 |

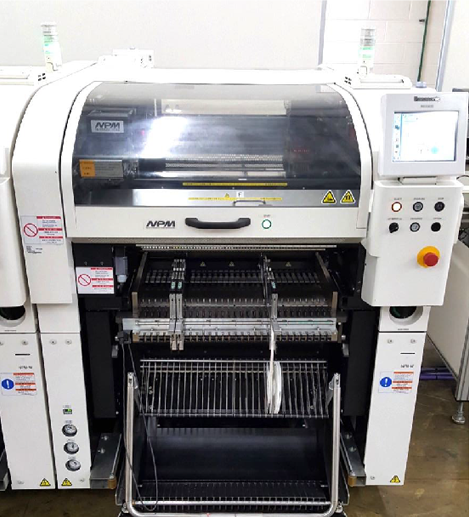

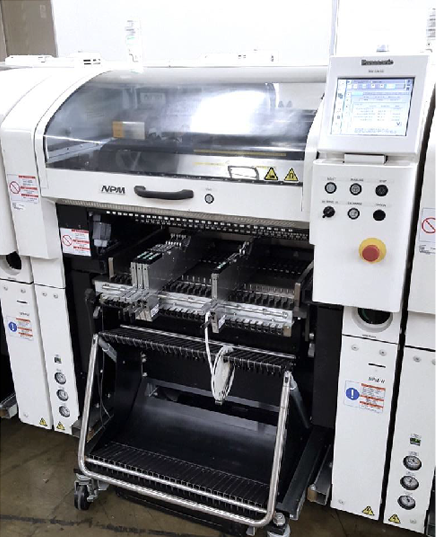

Panasonic NPM-W (3+3)
| with Single Tray Feeder | |
| Year: | 2012 |
| ~12000: | Hours |
| 11,000 cph | |
Eunil EWT-100
Panasonic NPM-W (8+8)
| Year: | 2012 |
| ~12000: | Hours |
| 40,000 cph | |
Panasonic NPM-W (3+3)
| Year: | 2013 |
| ~84,00: | Hours |
| 62,500 cph | |
Panasonic NPM-W (16+16)
| Year: | 2012 |
| ~12000: | Hours |
| 70,000 cph | |
Eunil EWT-100

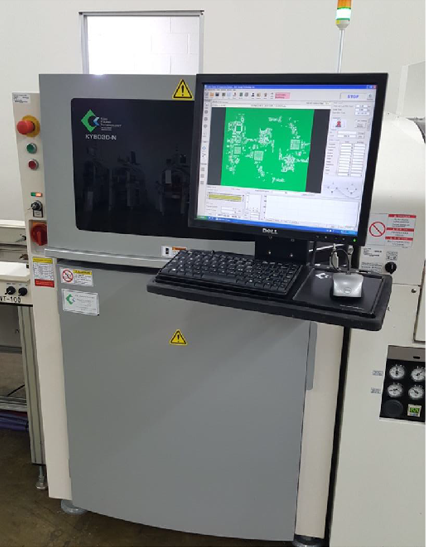

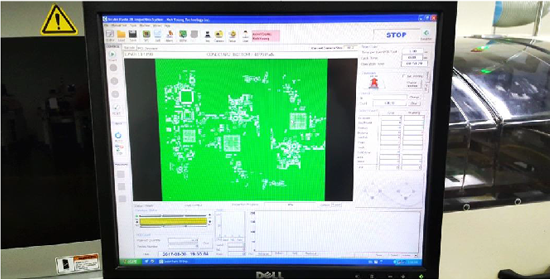

Koh Young KY8030-3L
Solder Paste Inspection
| Year: | 2012 |
| Max PCB: | 510 x 460 mm |
Eunil ESL-500

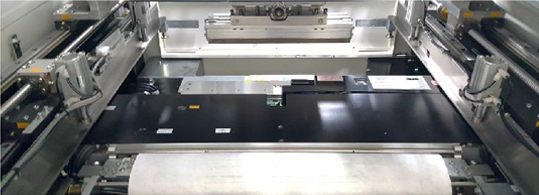

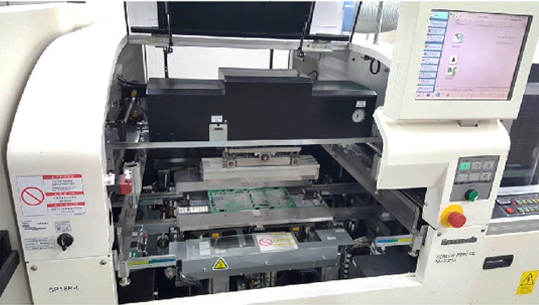

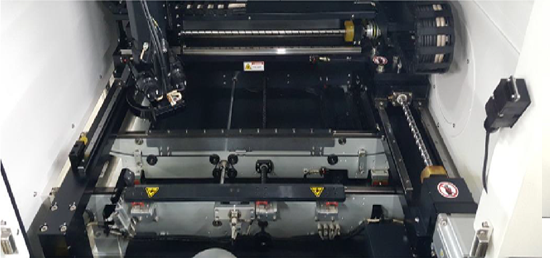

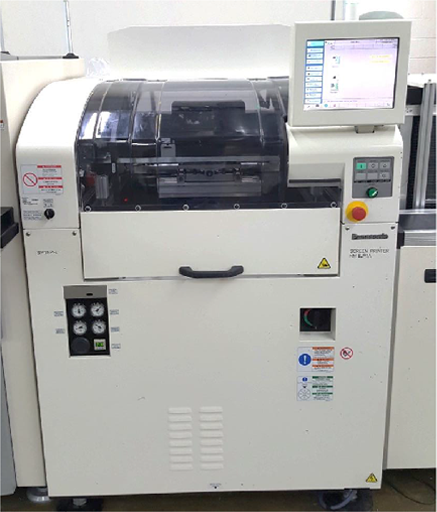

Panasonic SP18P-L
Screen Printer
| Year: | 2012 |
| Max PCB: | 510 x 510 mm |
| MAGAZINE LOADER | Eunil ESL-500 | PHOTOS |
| SCREEN PRINTER | Panasonic SP18P-L | PHOTOS |
| SOLDER PASTE INSPECTION | Koh Young KY8030-3L | PHOTOS |
| CONVEYOR | Eunil EWT-100 | PHOTOS |

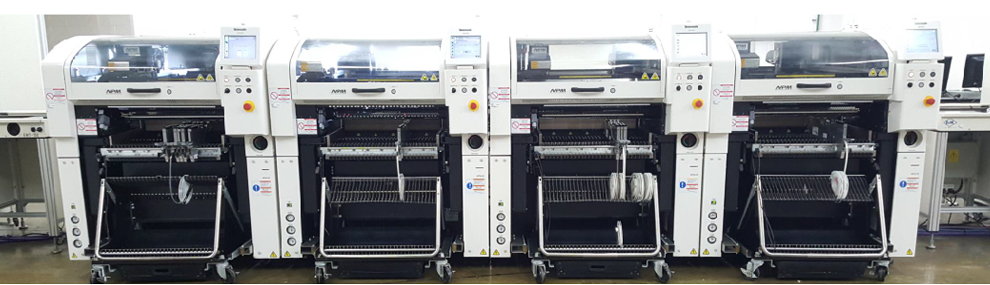

| COMPONENT PLACEMENT | Panasonic NPM-W (4 modules) | PHOTOS |
| CONVEYOR | Eunil EWT-100 | PHOTOS |
| REFLOW OVEN | Heller 1809 MKIII | PHOTOS |
| CONVEYOR | Eunil EWT-100 (with cooling fans) | PHOTOS |
| MAGAZINE UNLOADER | Eunil ESU-500 | PHOTOS |
C o n t a c t U s @
+1 (416) 385-1956
This email address is being protected from spambots. You need JavaScript enabled to view it.

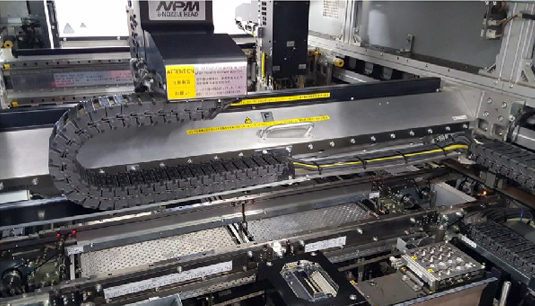

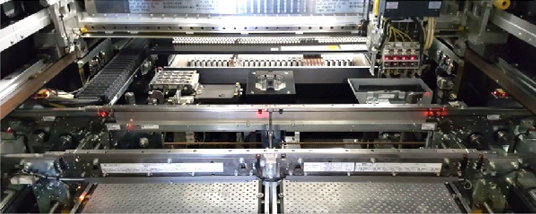

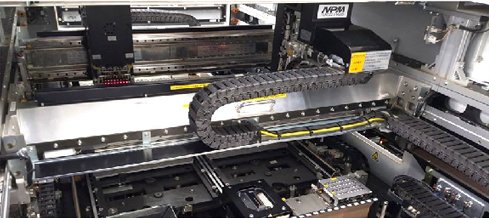

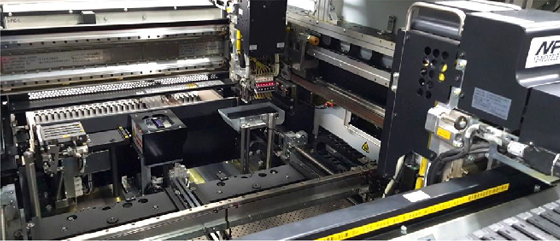

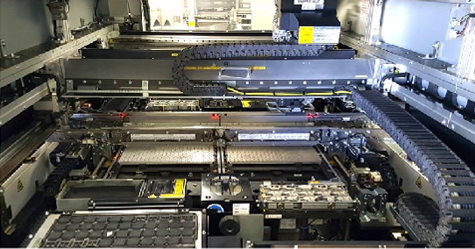

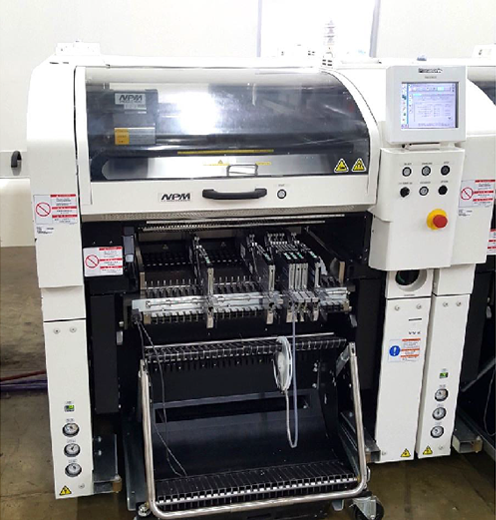

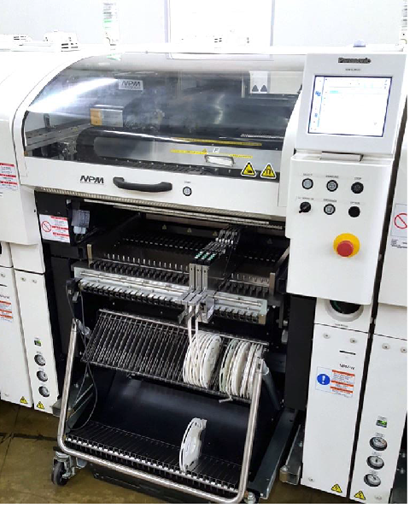

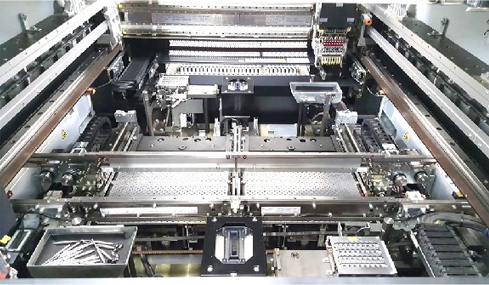

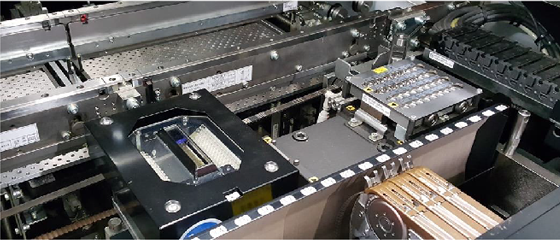

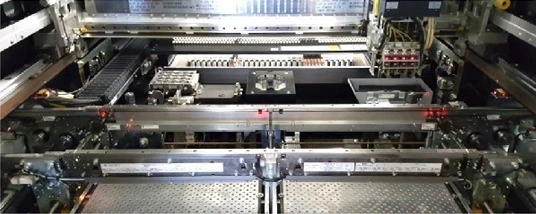

Module 1: Panasonic NPM-W (Yr. 2012) – 70,000 cph
Model Number: NM-EJM2D, single-lane
Serial Number: 1C7V0203
MC system soft: V09.01.08
| Front: | Rear: |
|---|---|
| 16-nozzle high speed head Gang change cart (30) Nozzle changer (12-nozzle) L-Camera Light Beam (BMXY0011) |
16-nozzle high speed head Gang change cart (30) Nozzle changer (12-nozzle) L-Camera Light Beam (BMXY0011) |
Module 2: Panasonic NPM-W (Yr. 2013) – 62,500 cph
Model Number: NM-EJM2D, single-lane
Serial Number: 1C7V0665
MC system soft: V09.01.08
| Front: | Rear: |
|---|---|
| 12-nozzle high speed head Gang change cart (30) Nozzle changer (12-nozzle) L-Camera2 Light Beam (BMXY0011) |
12-nozzle high speed head Gang change cart (30) Nozzle changer (12-nozzle) L-Camera2 Light Beam (BMXY0011) |
Module 3: Panasonic NPM-W (Yr. 2012) – 40,000 cph
Model Number: NM-EJM2D, single-lane
Serial Number: 1C7V0280
MC system soft: V09.01.08
| Front: | Rear: |
|---|---|
| 8-nozzle high speed head Gang change cart (30) Nozzle changer (8-nozzle) L-Camera Side light Light Beam (BMXY0011) |
8-nozzle high speed head Gang change cart (30) Nozzle changer (8-nozzle) L-Camera Side light Light Beam (BMXY0011) |

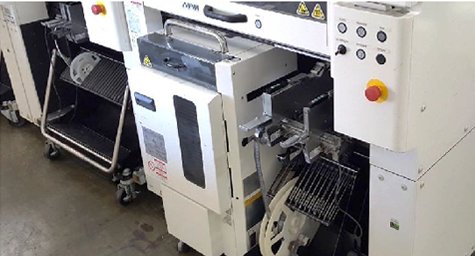

Module 4: Panasonic NPM-W (Yr. 2012) – 11,000 cph
Model Number: NM-EJM2D, single-lane
Serial Number: 1C7V0282
MC system soft: V09.01.08
| Front: | Rear: |
|---|---|
| 3-nozzle component mounting head Gang change cart (30) Nozzle changer (3-nozzle) L-Camera 3D sensor Side Light Light Beam (BMXY0011) |
3-nozzle component mounting head Single tray + fix feeder Nozzle changer (3-nozzle) L-Camera 3D sensor Side Light Light Beam (BMXY0011) |
